產品詳情
新能源 大功率
采用汽車級智能動力管理系統
-
-55攝氏度
溫度值
-
80N·m
最大扭矩
-
100公里
最長續航里程
-
2小時
電量可充滿
.jpg)
真正意義上

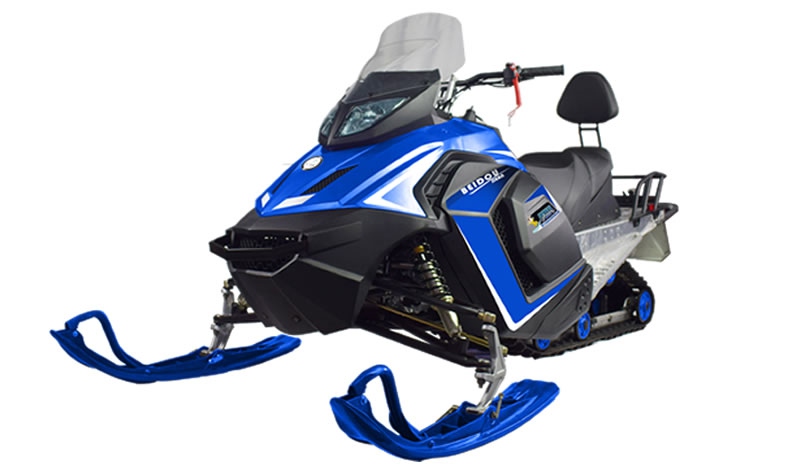

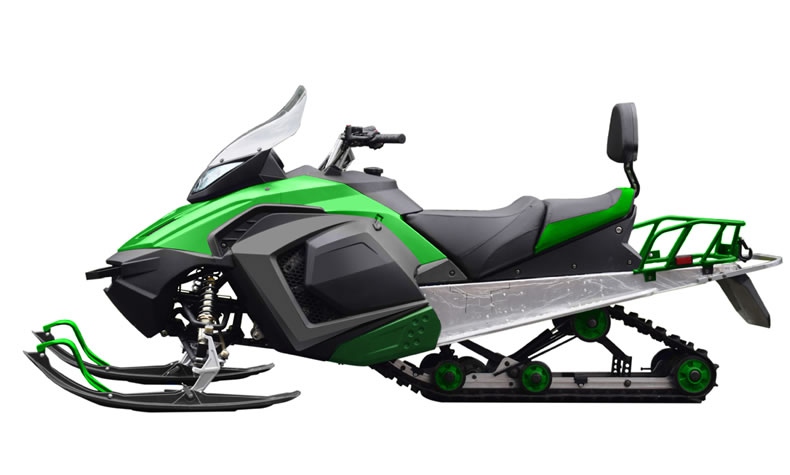

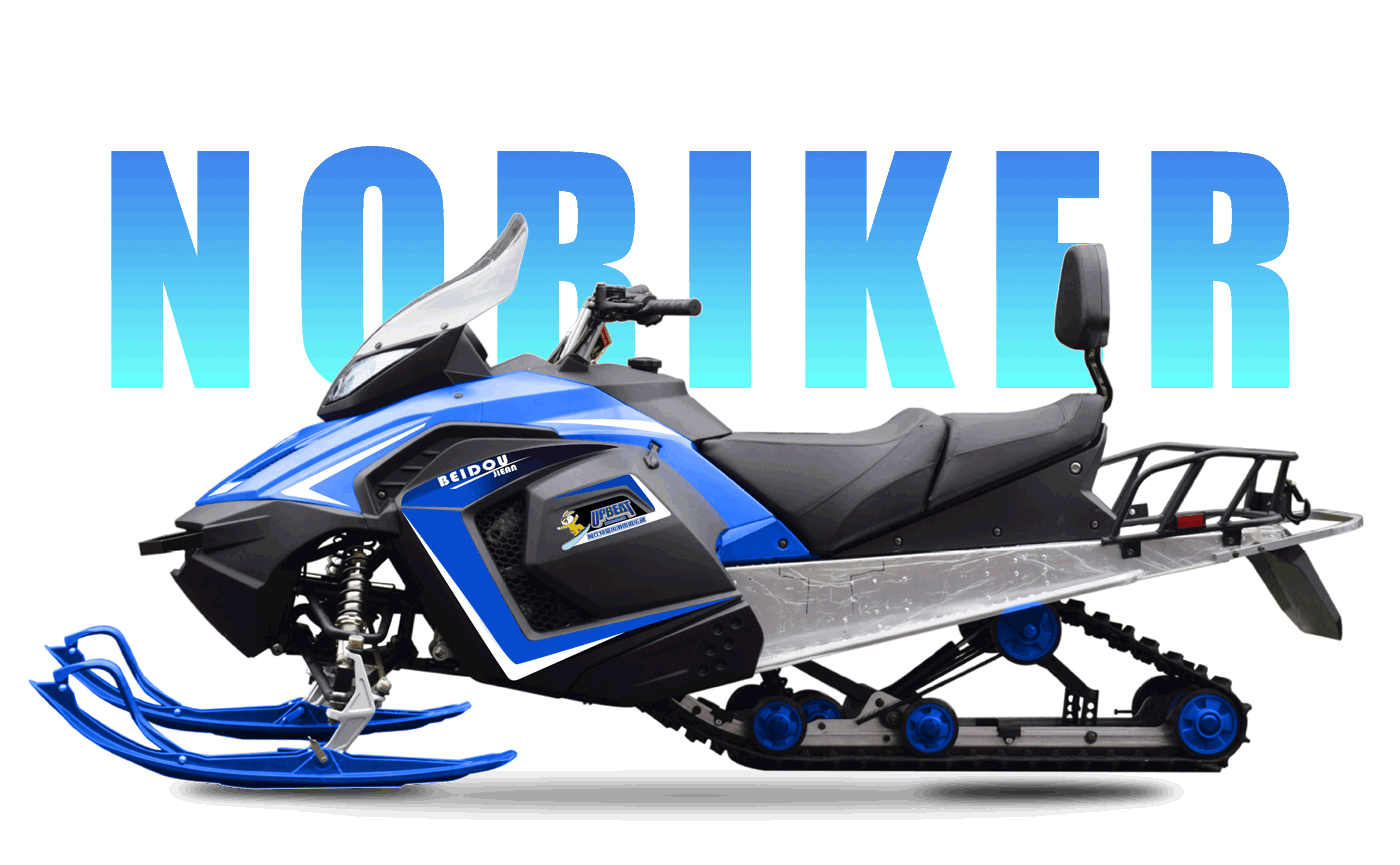

首款新能源電動雪橇車
在大玩具時代的背景下，北斗新能源雪地摩托車代表了冬季娛樂運動的先鋒未來，下一場流行風暴馬上就要來臨！
無與倫比的特性
零排放，低噪音，一次充電最長續航里程100公里。最大扭矩高達80N.m的高效引擎，輕量級-業內領先的超高動力與重量比
.jpg)
與眾不同的亮點
使用世界各地的汽車標準設備在任何地點充電20分鐘內將DC快速充電至80% AC 240V L2充電2小時。先進的熱量管理系統可確保電池始終處于最佳狀態，即使溫度降至-55C時也是如此。
| Electric Snowmobile（SPECS) | |
| BDJA Vehicle structure and electrical system | |
| Engine type | PMSM?（Permanent magnet synchronous motor） |
| Voltage platform（v Ah） | 60V150Ah |
| Rated power | 4.5kW/10.2hp/3000 |
| Max. torque | 65N·M |
| Max. horsepower RPM | 9kW/5500 rpm |
| Max. torque RPM | 5000 rpm |
| Starting system | Electric |
| Clutch type | CVT |
| Shift pattern | F-R |
| Endurance?(km) | 80 |
| DRIVE SYSTEM | |
| Small sprocket number of teeth | 14 Teeth |
| Big sprocket number of teeth | 14 Teeth |
| Drive pulley number of teeth | 9 Teeth |
| Track nominal width | 380mm |
| Track nominal length | 2626mm |
| Track profile height | 29mm |
| BRAKE SYSTEM | |
| Brake system type | Hydraulic disc brake |
| Brake fluid | DOT 4 |
| SUSPENSION SYSTEM | |
| Front suspension type | Independent dual A-shape swing arm |
| Front shock absorber type | Adjustable spring shock absorber |
| Front suspension max. travel | 120 mm |
| Rear suspension type | Comfortable combined cradle |
| Center shock absorber type | Adjustable spring shock absorber |
| Rear shock absorber type | Adjustable spring shock absorber |
| Rear suspension max. travel | 100 mm |
| ELECTRICAL SYSTEM | |
| Headlight type | Halogen lamp |
| Headlight output | 35 W |
| Taillight type | LED |
| Taillight output | 1 W |
| Instrument type | LCD |
| STEERING SYSTEM | |
| Handle grip type | Heating grip |
| Throttle type | Special throttle for snowmobile (with heating function) |
| DIMENSIONS AND WEIGHT | |
| Vehicle overall dimensions (L × W × H) | 2670×1070×1070 mm |
| Dry weight | 200 kg |
| Ski stance | 950 mm |
| Climbing capability | ≥25° |
| Max speed (km/h) | 40 |
| APPEARANCE | |
| Plastic covers | Low temperature resistance PP |
| Optional Color | Red, Orange, Blue |
| ACCESSORIES | |
| Front bumper | Exist |
| Footrest | Aluminum alloy integral footrest |
