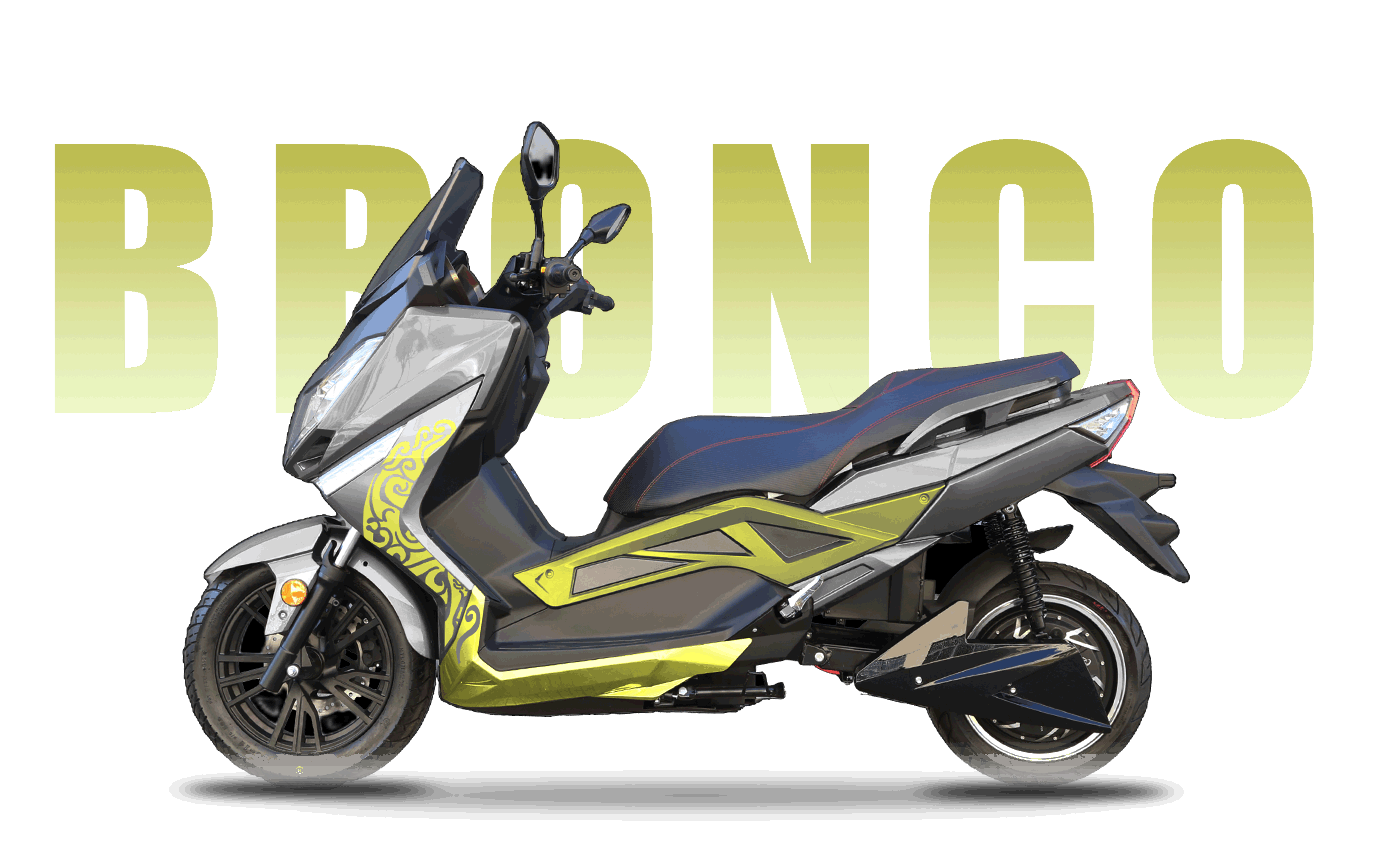

BRONCO
BRONCO
產品詳情
新能源 大功率
采用汽車級智能動力管理系統
-
5500w
功率
-
16°
爬坡強度
-
110KM
最大續航
-
120mins
超級快充
.jpg)

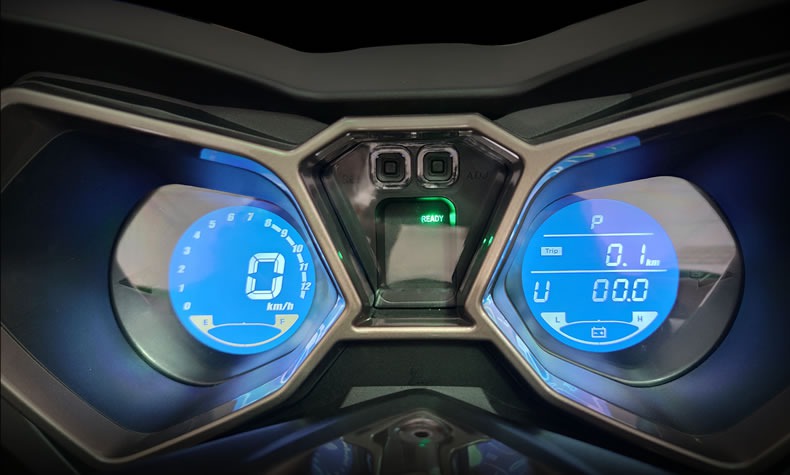

可視化儀表盤
一目了然
清晰顯示電量指示表、速度指示表、轉向指示燈、制動指示燈、小計里程等數據。
.jpg)

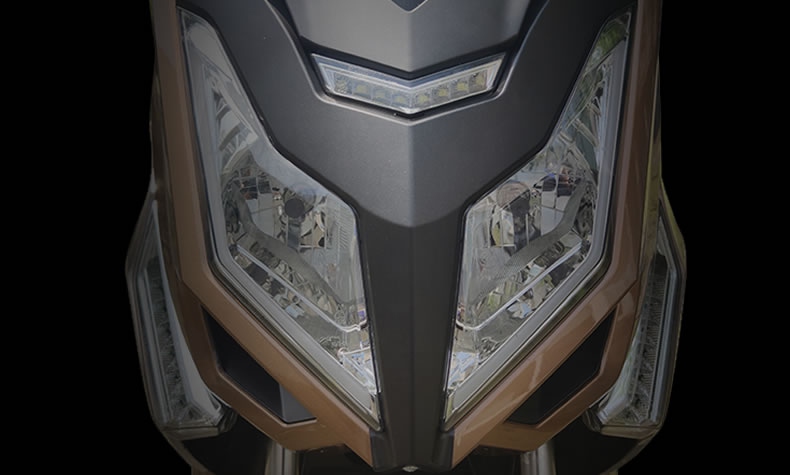

鹵素前大燈
柔和更安全
汽車級鹵素大燈，燈光顯色性好，穿透力強，比普通白熾燈使用壽命長、色溫高、發光效率高。
.jpg)

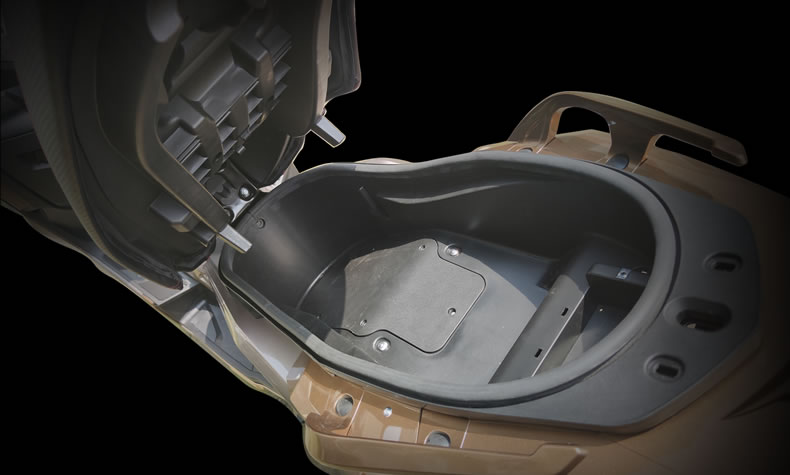

超大座桶
盡情儲物
30L超大座桶，儲物空間超寬敞，出門盡管買買買，儲物安排的明明白白。
.jpg)
高效液壓制動系統
剎車距離更短
前、后輪均采用高效液壓制動系統，前盤直徑255mm，后盤直徑220mm，剎車距離更短、更安全。
.jpg)
摩托車標準原材料
小磕小碰不再惱
高強度抗沖擊復合材料車身具有抗撞擊功能，使用壽命長，改性ABS材料使抗老化能力提升40%。
| T9（SPECS) | |
| BDJA Vehicle structure and electrical system | |
| BDJA Electric Drive-Chain System | 5500W?Direct current?brushless hub motor |
| 70.4V39Ah?Lithium battery | |
| Maximum charging rate 25A | |
| FOC vector controller | |
| CAN communication protocol, GPS, Beidou, base station triple mode positioning, OTA online upgrade. | |
| Braking system | The front and rear wheels are equipped with high efficiency hydraulic braking system. The diameter of the front disc is 255mm, and the diameter of the rear disc is 220mm. Equipped with CBS braking system, driving is safer. |
| Front suspension system | Telescopic hydraulic front shock absorber |
| Rear suspension system | Five adjustable spring hydraulic double rear shock absorber, soft and hard according to the conditions of using. |

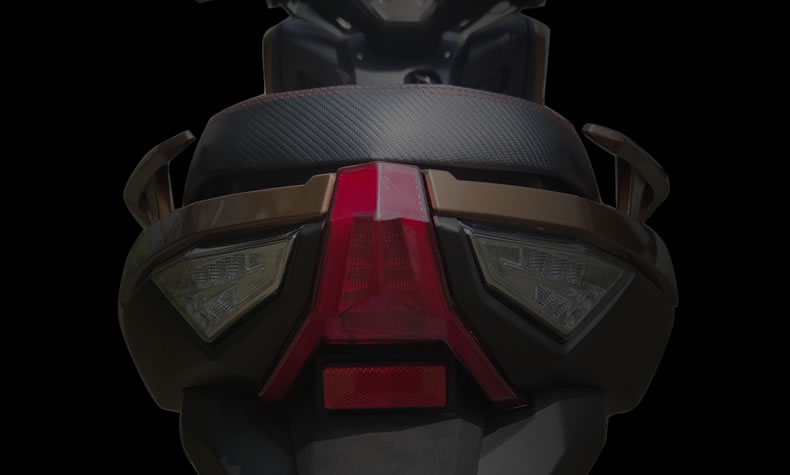

| Lighting | Halogen headlamp, better lighting effect, turn signal lamp, rear tail lamp are LED, longer service life. |
| Tires | Front: 120 / 80-14??Rear: 130 / 60-13 |
| Dashboard | Electric indicator, speed indicator, turn indicator, brake indicator, subtotal mileage, etc |
| Front windshield | High strength PC |
| BDJA Intelligence function | |
| Alarm | Power off alarm, backup battery low power alarm, vibration anti-theft alarm, electronic fence, displacement alarm, overs peed alarm. |
| Remote locking | The power supply of the whole vehicle can be cut off at any time through remote control by platform or mobile app. |
| Tracking and positioning | Regularly report location information to the platform or mobile app. |
| Protection on battery under complex working conditions? |
Intelligent control, such as automatic control of output power at low power or high temperature, ensures that the battery is always in good working condition and prolongs battery life |
| Motor high Efficiency tuning | Based on excellent tuning, the motor has a wide efficient area, and the motor will always be in an efficient running state within the range of conventional speed |
| Self Fault diagnosis | The fault and health status of motor, electric control and battery are under monitoring all the time. In case of any problem, the instrument will immediately inform the user to make corresponding correct treatment |
| BDJA Vehicle size specification and performance | |
| Vehicle weight | 140kg |
| Long × wide × high | 2150mm×785mm×1325mm |
| Wheelbase | 1560mm |
| Seat height | 800mm |
| Number of seats | 2 |
| Load??weight | 150 kg |
| Maximum endurance | 110km (According to China E-Motorcycle Mileage Test Standard) |
| Minimum ground clearance | 150mm |
| Minimum braking distance | ≤5m |
| Climbing ability | ≥16° |
| Acceleration ability (0-50m) | 5s |
| Top speed | 80km/h |
| Packing Size | 2180*690*1290mm???173Kg????carton+steel frame |
